World's Best Ultra Low Latency Technology
Zao Type-G
About The Zao Type-G
Reliable and Secure Live Streaming for Teleoperation
Soliton Systems Zao SDK is a cutting live streaming OEM product for teleoperations, teledriving, remote robotic control, and BVLOS drone manufacturers. It utilizes RASCOW2 protocol for near real-time streaming with ultra-low latency and extreme reliability, using patented bonding technology to combine multiple cellular networks for seamless, high-speed connections, enabling remote operators to safely control devices in real-time.
In remote control at civil engineering and construction sites, the stability of communication is directly related to safe and smooth operation.
“Zao-Type G” uses multiple carrier (network) lines at the same time, and by optimally controlling and load balancing the situation for each line in real-time, it reduces delays and interruptions in video transmission and control signals. This results in highly stable operations.

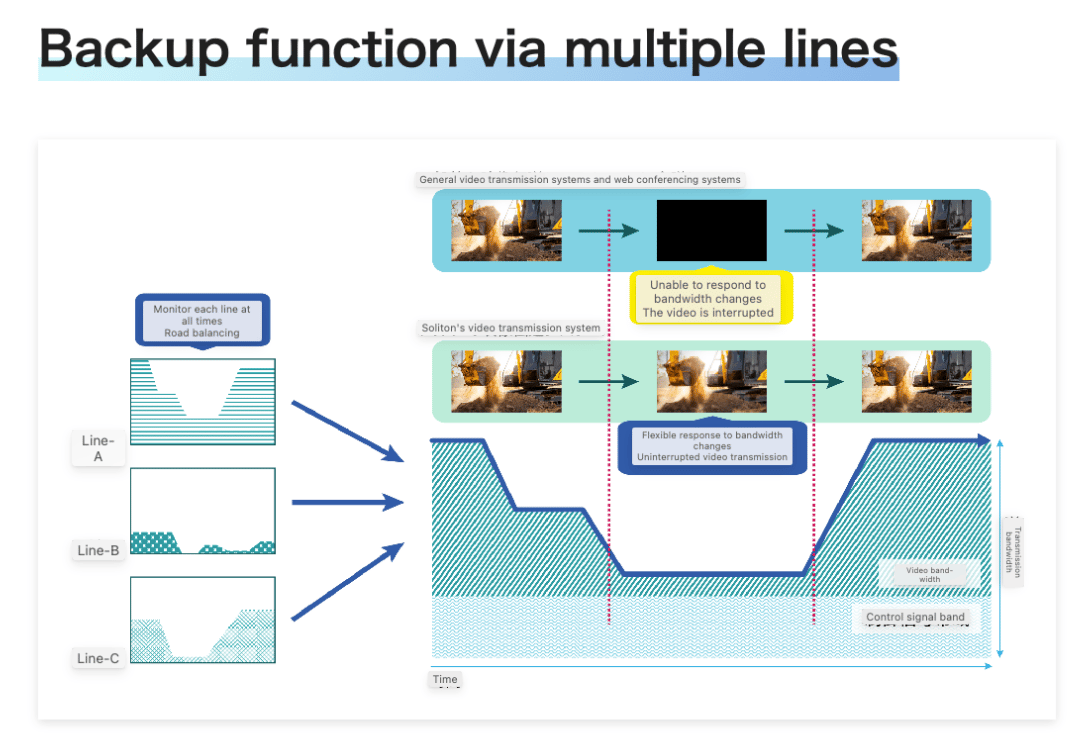

Even at a site where the cellular environment is unstable, with bonded multiple communication coupled with the use of adaptive encoding that mitigates against limited bandwidth or where it fluctuates widely, the Zao-G greatly reduces the risk of communication interruption during work.
Zao Type-G Appliance

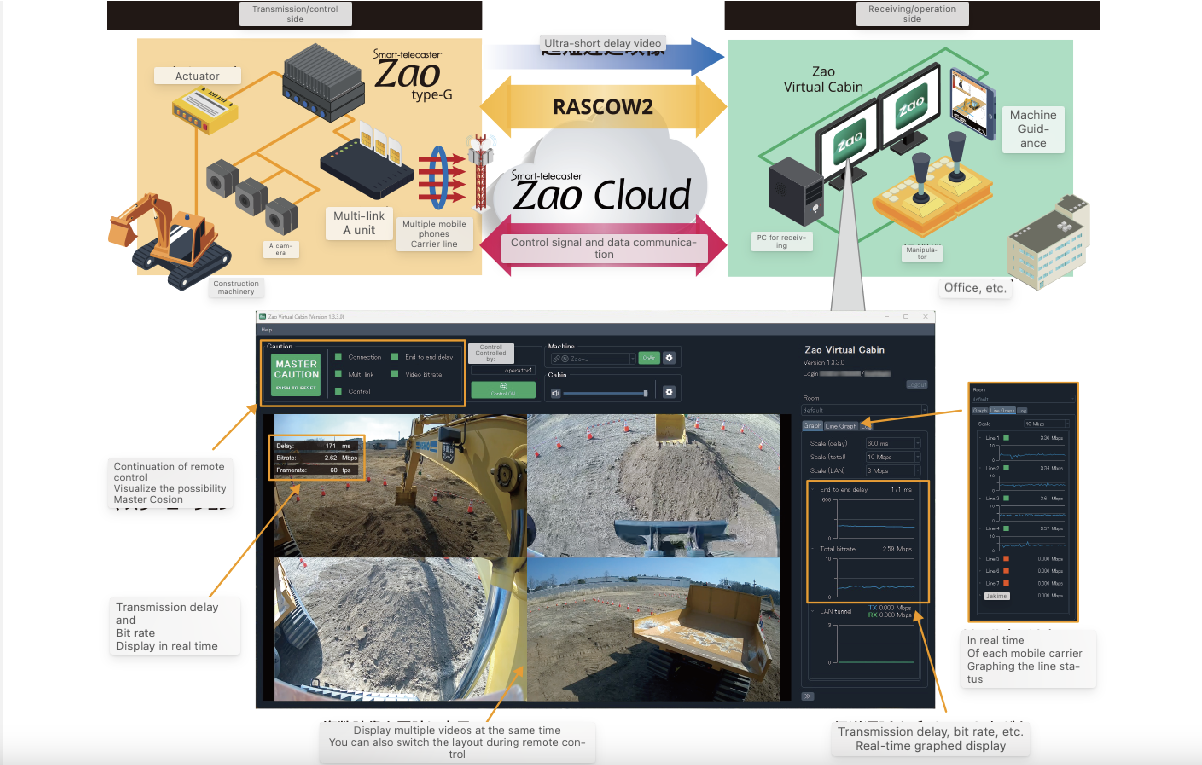

The Zao Type- G is an OEM appliance complete with GMSL cameras that leverages NVIDIA Jetson. Utilizing Soliton’s proprietary “RASCOW2” protocol, it enables highly reliable video transmission, flexibly integrating into construction site systems. Equipped with IP tunneling capabilities for control signals such as CAM, it connects the target construction equipment to the remote control controller via a dedicated server that can be on-prem or privately hosted by Soliton.
This allows for simultaneous remote control of multiple construction machines and real-time video sharing of construction progress, strongly supporting unmanned construction and the establishment of remote monitoring systems.
Zao Type-G Specifications
1. Technical Specifications
| Name | Zao type-G | |
| Compatible Viewer | Zao Virtual Cabin / Zao Cloud View | |
| LAN | 10/100/1000 BASE-T Ethernet | |
| Power supply | DC12V | |
| Interface | Micro HDMI | |
| USB3.0 Type-C | ||
| Transmission method | Communication protocol | RASCOW2 |
| Maximum number of lines | 8 lines | |
| Compatible line | LTE / 5G / Wi-Fi / Starlink / LAN | |
| Encryption method | AES 256bit | |
| Video transmission | Encoding method | H.265 |
| Input interface | GMSL2 x6 | |
| Audio transmission*1 | Input interface | ALSA |
| Channel | Stereo | |
| Encoding | Opus | |
| Sampling rate | 48kHz | |
| Serial tunneling*2 | Baudrate | 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Parity | none / odd / even | |
| Packetize Mode | Plane | |
| LAN tunneling ※3 | Corresponding protocol | IPv4, ICMP/UDP/TCP |
- ※1 Additional USB audio adapter is required
- ※2 Additional USB serial cable is required
- ※3 You must use Zao Virtual Cabin for the Viewer
