Q: Product overview

Decoder, Remote management & two-way audio Operating on Windows 10 or 11, HD View5 decodes the incoming H265 stream from the Zao-X, Zao-S, Zao or Smartphone app. Remote management includes the configuration of latency, bit rate and resolution type. It also allows 2-way audio communication (IFB) back to the camera operators in the field. The Zao App for iPhone and Android can also stream live video direct to the HD-View software over the internet creating an HD-SDI output from the smartphone app. The Windows server is equipped with a Blackmagic Decklink card to provide HD-SDI out of the server. The decoder can also output RTMP that can be used to livestream video to social media platforms such as YouTube, Facebook and other streaming media platforms, or CDN’s or Video Management Systems.

Fast and Easy Decoding Software

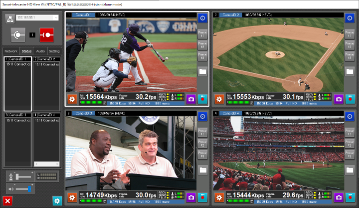

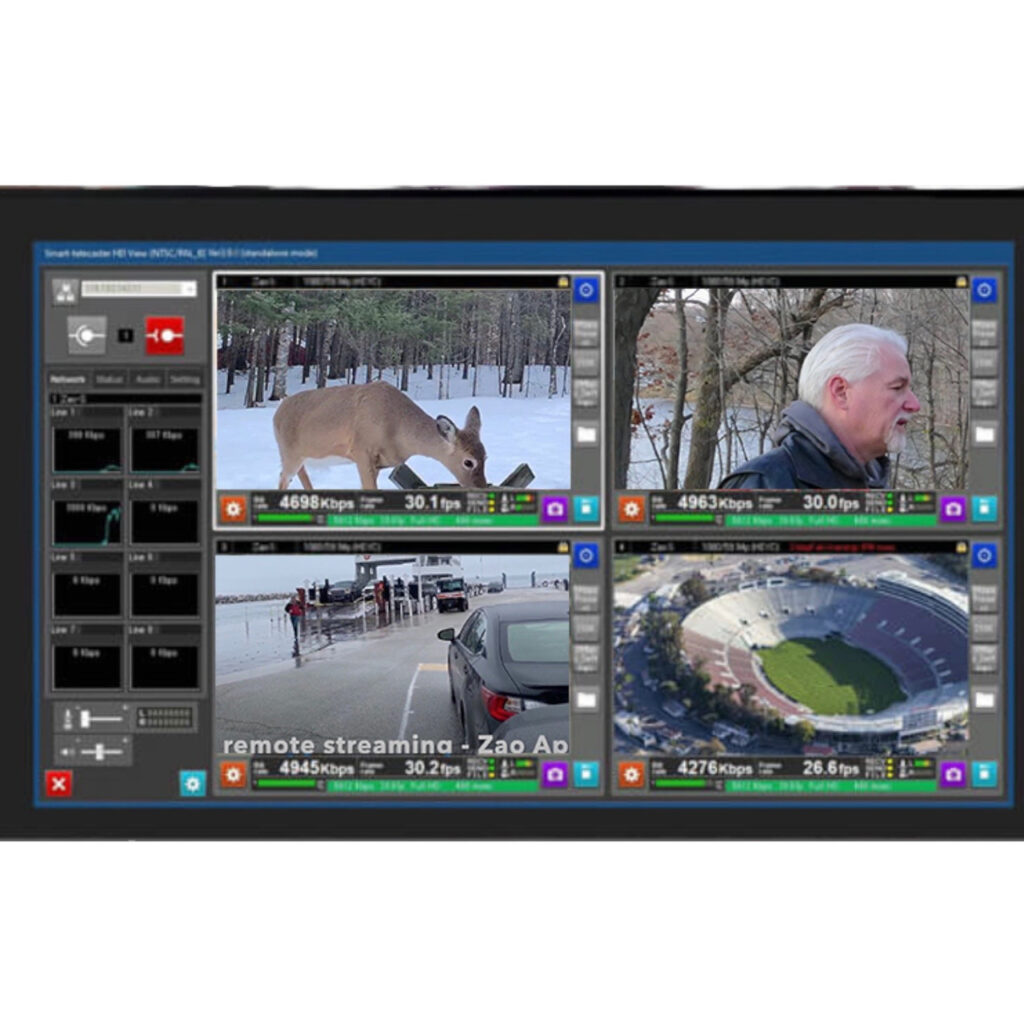

STC HD View is a windows based decoding software installed at the receiving end that allows operators to decode and view up to 4 incoming H.265 video streams.

HDView5 can transcode or passthrough an incoming H.265 HEVC to either HD-SDI or to an IP Video Stream (RTSP). This can be used to push a live stream to a video management system (VMS), to a CDN, or directly to social media.

HDView5 is installed on a Win 7 or Win 10 platform (min 8GB RAM). If an HD-SDI output is required, then a Blackmagic card can be installed on the workstation.

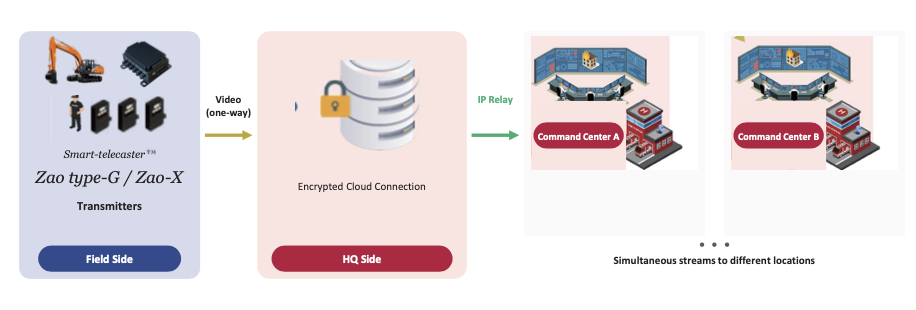

Soliton has two other decoders - ZaoView for Linux (also available as a field based Jetson based decoder) and Cloud Zao View. Both these decoders support 4K and ultra low latency.

Key Features STC-HD View

Real time decoding of video and audio streams from Zao-X, Zao-S, Zao and Zao Android App
Up to 4-channels from 4 separate encoders/Zao streaming apps
2-way audio: audio return to the transmitter
Operates on commodity Win 7 or Win 10/11 workstation (min 16GB RAM)
RTMP Streaming output - push IP live stream to CDN, VMS or social media
HD-SDI Output (via Blackmagic Decklink Quad 2 card)
Can record TAF file locally

Decoder, Remote Management & Two-Way Audio

Operating on Windows 10/11 platform, HD View decodes the incoming H265 stream from the Zao X, Zao-S, Zao or Smartphone app.

Remote management includes the configuration of latency, bit rate and resolution type. It also allows 2-way audio communication (IFB) back to the camera operators in the field.

The ZaoApp for iPhone and/or Android app can also stream live video direct to the HD-View software over the internet creating an HD-SDI output from the smartphone app. The Windows server is equipped with a Blackmagic Decklink card to provide HD-SDI out of the server.

The decoder can also output RTSO that can be used to livestream video to social media platforms such as YouTube, Facebook and other streaming media platforms, or CDN’s or Video Management Systems.

Specifications STC HD View

1. Product overview

Decoder, Remote management & two-way audio

Operating on Windows 10 or 11, HD View5 decodes the incoming H265 stream from the Zao-X, Zao-S, Zao or Smartphone app. Remote management includes the configuration of latency, bit rate and resolution type. It also allows 2-way audio communication (IFB) back to the camera operators in the field. The Zao App for iPhone and Android can also stream live video direct to the HD-View software over the internet creating an HD-SDI output from the smartphone app. The Windows server is equipped with a Blackmagic Decklink card to provide HD-SDI out of the server. The decoder can also output RTMP that can be used to livestream video to social media platforms such as YouTube, Facebook and other streaming media platforms, or CDN’s or Video Management Systems.

2. Specifications

Key specifications of STC HD 4 channel View

This is an example specification of GPU and our test is done by HP Z620 with k2200.

-NVIDIA Driver
Please check the driver version as below.
K620 : 369.26 or newer
K2200 : 375.57 or newer

GPU that supports nvidia video encoder
High Performance Computing and Hyperscale Accelerators
Tesla K10, K20, K40, K80, M4, M40, M6, M60, P4, P40 and newer
Desktop and Workstation
Quadro K2000, K2200, K4000, K4200, K5000, K5200, K6000,
M4000, M5000, M6000, P5000, P6000 and newer
Mobile Workstation
Quadro K2000M, M2000M, K5000M, and newer
Cloud Gaming, Virtual Desktops, and Cloud Enterprise
GRID K1, K2, K340, K520, M30, M40, and newer
Desktop and Notebook Computers (Up to 2 concurrent encode sessions per system)
GeForce (encoding supported only on Kepler, Maxwell and Pascal GPUs)
Cards that have been tested in our system is K2200 and K620.
When using IP streaming function on 4 channels, it requires high-performance servers. Soliton has tested on “HP Z620 with K2200” which is recommended.

Video Codec
VP8, H.265

Driver version – BlackmagicDesign Desktop Video 10.9.3 and 10.11 (Windwos10 1803 or later)

Connectable with Smart-telecaster ZAO--X, ZAO-S, Zao, Zao App for iPhone and Android.

Delay
240msec ~ 30000msec

Operating system
Windows 10/11

Server
Runs on standard Windows Server software.

CPU
Intel Xeon

Memory
16GB+ (4 slot parallel use)

External output
Black Magic Design Deck link Quad (4 output) by SDI or HD-SDI

RTMP Streaming

Video Board
Max 4ch HD-SDI (Embedded Audio), _Ref-in tested with BMD Deck link Quad and Quad 2

HDView5 required specifications:
min HP Z4 G4 Workstation

Windows 10/11 Pro for Workstations (64bit)
Intel (R) C422 chipset
Intel(R) Xeon(R) W-2123 Processor (3.6GHz, 4-core, 8.25MB, 2666MHz)
32GB DDR4 SDRAM (2666MHz, ECC, Registered, 8GBx4)
1TB Hard disk drive (SATA, 7,2000rpm)
